PlR Sensor

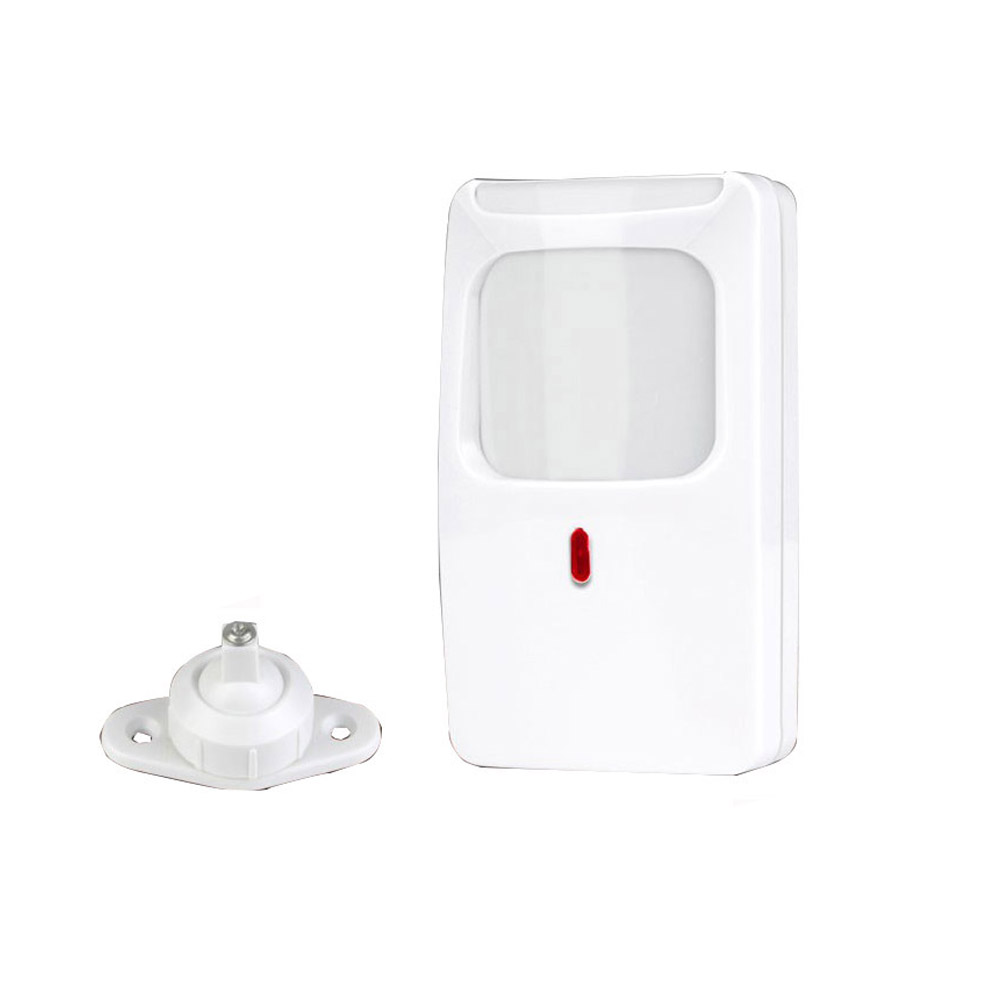

DT-7225 Infrared Microwave Technology Dual Technology Motion Sensor PIR Detector

Product Attribute

Model Number:DT-7225
Power Supply Voltage:DC9-16V
Product:PIR Detector
Detecting Distance:12M
Material:ABS fire resistant plastic
Detection angle:110°
Installation environment:Indoor installation
Alarm Method:Wired

Specification:
working voltage: 7.5-16v

Detection range: 7.6m*7.6m

Power requirements: 25mA / 7.5-16VDC (UL: 8.9-14.5 VDC)

Sensitivity: detection of the normal pace, as the region steps 2-4

Microwave frequency: 24.125GHz

Tamper switch: (NC) 50mA, 24VDC

Alarm Relay: excitation type A 500mA, 30 VDC

Operating temperature: -10 55 , 5% - 95% relative humidity non-condensing

Radiated Immunity: 30V / m, 10MHz - 1000MHz

Anti-white light: 8,000 Lux
Features

Has excellent resistance to false alarms and the ability to capture

Easy and quick installation

Built-in temperature compensation and microwave anti-jamming capabilities to adapt to a variety of hot and cold environments

K-band microwave technology to further suppress false positives, and to improve the detector sensitivity

ABS rugged durability, excellent shock
package:
1* 7225 detector
